DevTools

Minecraft 版本： 1.14 1.14.1 1.14.2 1.14.3 1.14.4

平台： fabric

标签： game-mechanics utility

DevTools, the World Inspector

DevTools is a client-side Fabric mod for versions through 26.x-1.14.x that adds a powerful Inspect mode to your game. By freezing your movement and unlocking your cursor, you can point at blocks, fluids, dropped items, and entities to read rich, debug-style data directly on your screen.

It features customizable layouts, deep NBT-style data dumps, and clipboard copying.

---

Requirements & Versioning

Requirement	Version / Constraint	Notes
Minecraft	26.x-1.14.x	Compatible with 26.x/1.21.x/1.20.x/1.19.x/1.18.x/1.17.x/1.16.x/1.15.x/1.14.x releases.
Mod Loader	Fabric >=0.18.6	Client-side only. Safe to leave in your mods folder when joining servers.
Fabric API	* (Any version, but the latest is reccomended)	Required for core mod functions.

---

Quick Start

1. Install Fabric, then drop DevTools and the Fabric API mod into your mods folder.
2. Launch the game and enter a world.
3. Press F6 (default) to toggle Inspect mode.
4. Move your mouse over blocks or creatures, and Left-Click to select them.
5. Press M to expand detailed data for your selected target.
6. Head to Options → DevTools… to tweak colours, toggle data lines, or change the layout.

---

How Inspect Mode Works

When you turn Inspect mode on, the game adjusts your interactions so you can focus on the environment data.

Feature	Behaviour
Movement	You stay completely still. Movement is suppressed so you do not accidentally walk away from your inspection point.
Mouse Freedom	Your cursor is unlocked. Vanilla left-click does not punch blocks or attack; it is used exclusively for selecting targets.
Smart Raycasting	The mod picks targets based on camera + cursor. You can target blocks, flowing fluids, item entities on the ground, XP orbs, and mobs.
World Outlines	A thin outline shows what you are hovering over. A thicker, brighter outline shows what you have selected.
Scrolling	Use your mouse wheel over the info panel to scroll through long text.

---

Keybinds

All keys can be remapped under Controls → DevTools. The info panel always displays the actual names of the keys you have currently bound.

Action	Default Key	Description
Toggle Inspect	F6	Turns Inspect mode on and off.
Select Target	Left Mouse	Locks the HUD onto the hovered block/entity.
More Info	M	Toggles the detailed NBT/data dump.
Free Player	Hold L-Alt	Restores movement and camera while keeping Inspect on.
Copy Value	Hold L-Ctrl	Click any line in the HUD to copy its value to your clipboard.

Free Camera (Alt Mode)

If you hold Left Alt, you temporarily get your movement and camera controls back. Raycast updates are frozen, so the outlines stay fixed to your last targets, and the HUD becomes transparent so you can see the world.

Menu Suspensions

Opening any fullscreen menu (for example the Pause or Inventory screen) suspends and freezes raycasting and its updates, so you won't mess up your selection.

---

The Info Panel (HUD)

The HUD is designed to provide immediate summary data, with the option to expand into detailed categories.

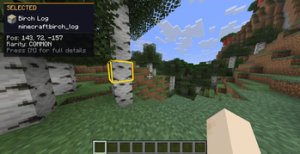

• Header: Shows if you are HOVERING or have a target SELECTED. Includes the icon of the selected block/entity, display name, and registry ID. Rarity colours automatically match vanilla Minecraft tiers (common, uncommon, rare, epic).
• Summary: Quick facts like coordinates, HP for living entities, or drop info for items.

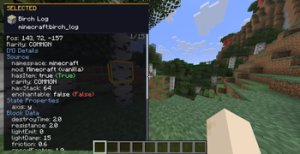

• Detailed Info ("More Info"): Hitting M opens a categorized text dump. Default category order: Source, Item Form, State Properties, Block Data, BlockEntity, Environment, Type, Identity, State, Living, Equipment, Effects, Mob, Raw NBT.
• Boolean Styling: true / false lines are coloured distinctly for quick scanning.
• Copy Feedback: Successfully copying a line flashes a quick "copied" message.

---

Settings Menu

Options → DevTools… opens the settings menu. The button is placed under the FOV slider, in the middle.

Button	Opens
HUD	Submenu for Colours and Preferences
Keybinds	Vanilla Key Bindings screen
Layout	Panel corner positioning and category ordering

Technical stuff ### Configuration File (`devtools.properties`) Location: `.minecraft/config/devtools.properties` | Key | Type | Purpose | |---|---|---| | `tutorialSeen` | `true` / `false` | Tutorial already shown / skipped forever | | `hud.color.` | 8 hex digits `AARRGGBB` | HUD colour overrides (see table below) | | `pref.` | `true` / `false` | Per-line / per-section HUD preference | | `layout.position` | `TOP_LEFT`, `TOP_RIGHT`, `BOTTOM_LEFT`, `BOTTOM_RIGHT` | Inspector panel corner | | `layout.categoryOrder` | Comma-separated names | Custom **More info** category order | --- ## HUD Colours Screen Each line has a colour square, a hex code field, a copy button, and a reset button. Clicking the square opens a colour picker with Hue, Saturation, and Brightness sliders. ### HUD Colour Keys (`hud.color.*`) | Config suffix | UI label | Role | |---|---|---| | `bg` | Background | Panel fill | | `borderTop` | Border (top) | Top accent line | | `headerBg` | Header background | Header band | | `header` | Header label | “HOVERING” / “SELECTED” text | | `category` | Category label | Section titles in dumps | | `key` | Property key | Text before `:` | | `value` | Property value | Text after `:` | | `dim` | Dim text | Hints / secondary lines | | `scrollbar` | Scrollbar track | Scroll gutter | | `scrollThumb` | Scrollbar thumb | Scroll handle | | `boolTrue` | True value | Boolean badge / styling | | `boolFalse` | False value | Boolean badge / styling | *(Note: Item rarity colours are strictly tied to vanilla and are not configurable here).* --- ## HUD Preferences Screen You can toggle exactly which lines show up. The top row, **All Preferences**, sets every other box on or off together. ### General Preferences | Key | Label | |---|---| | `pref.showIcon` | Show icon | | `pref.showId` | Show identifier | ### Block-related Preferences | Key | Label | |---|---| | `pref.block.source` | Source mod | | `pref.block.destroyTime` | destroyTime | | `pref.block.resistance` | resistance | | `pref.block.lightEmit` | lightEmit | | `pref.block.lightDamp` | lightDamp | | `pref.block.friction` | friction | | `pref.block.speedFactor` | speedFactor | | `pref.block.jumpFactor` | jumpFactor | | `pref.block.isSolid` | isSolid | | `pref.block.isAir` | isAir | | `pref.block.liquid` | liquid | | `pref.block.blocksMotion` | blocksMotion | | `pref.block.canOcclude` | canOcclude | | `pref.block.redstone` | redstone | | `pref.block.randomTick` | randomTick | | `pref.block.ignitedByLava` | ignitedByLava | | `pref.block.stateProps` | State properties | | `pref.block.blockEntity` | Block entity NBT | | `pref.block.environment` | Environment (biome/light) | ### Entity-related Preferences | Key | Label | |---|---| | `pref.entity.source` | Source mod | | `pref.entity.category` | category | | `pref.entity.dimensions` | dimensions | | `pref.entity.fireImmune` | fireImmune | | `pref.entity.uuid` | UUID | | `pref.entity.customName` | customName | | `pref.entity.tags` | tags | | `pref.entity.onGround` | onGround | | `pref.entity.invulnerable` | invulnerable | | `pref.entity.silent` | silent | | `pref.entity.glowing` | glowing | | `pref.entity.noGravity` | noGravity | | `pref.entity.frozen` | frozen | | `pref.entity.inWater` | inWater | | `pref.entity.onFire` | onFire | | `pref.entity.HP` | HP | | `pref.entity.armor` | armor | | `pref.entity.isBaby` | isBaby | | `pref.entity.effects` | Active effects | | `pref.entity.equipment` | Equipment | | `pref.entity.noAI` | noAI | | `pref.entity.persistent` | persistent | | `pref.entity.leftHanded` | leftHanded | | `pref.entity.target` | target | | `pref.entity.owner` | owner | | `pref.entity.rawNbt` | Raw NBT | --- ## Layout Screen | Control | Cycles through | |---|---| | **Window position** | Top Left → Top Right → Bottom Left → Bottom Right | | **Ordering** | **Default**, then “** First**” for each known category. | *Remember to press **Save** on the Colours, Preferences, and Layout screens to keep your changes.*

---

Technical stuff again, sorry ## Project Metadata & Links | | | |---|---| | **Mod ID** | `devtools` | | **Authors** | Beef and Capybarabeef Studios under Miljö AB | | **Source Code** | [GitHub Repository](https://github.com/im-theslimeguy/devtools) | | **Issue Tracker** | [GitHub Issues](https://github.com/im-theslimeguy/devtools/issues) |

License

DevTools is released under the MIT License. The complete legal text is available in the LICENSE file at the repository root.
