World Web Map - Minecraft 1.20.1 Server Web Map Mod
Server-side Minecraft 1.20.1 web map mod for Forge and Fabric.

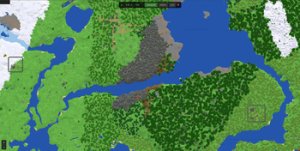

World Web Map renders a 2D top-down map of your Minecraft world and serves it in a browser:
http://server-ip:8123No client mods are required. Players only need a browser.
Versions and Requirements
| Loader | Version | Minecraft | Loader version | Extra dependency | Java | Jar |
|---|---|---|---|---|---|---|
| Forge | 0.2.1 | 1.20.1 | Forge 47.x, tested on 47.2.0 | none | 17 | forgewebmap-0.2.1.jar |
| Fabric | 0.2.1 | 1.20.1 | Fabric Loader 0.15.11+ | Fabric API 0.92.2+1.20.1 | 17 | fabricwebmap-0.2.1.jar |
Features
- 2D top-down map with height shading.
- Live player markers with names, updated every 2 seconds.
- Biome name shown under the cursor or mobile center point.
- Dimension switcher for Overworld, Nether, and The End.
- Auto-render as players explore, with chunk-load debounce.
- Robust compositing so previously rendered pixels survive re-renders.
- PNG tile writes are atomic and skipped when unchanged.
- Leaflet 1.9.4 browser UI with zoom, pan, dark styling, and mobile controls.
Commands
All commands require operator level 2. Syntax is the same for Forge and Fabric.
| Command | Description |
|---|---|
/webmap status |
Show web server status, queue size, worker count, and rendered tile count |
/webmap render <tileX> <tileZ> |
Render one Overworld tile; tile coords are floor(blockCoord / 256) |
/webmap render-area <minX> <minZ> <maxX> <maxZ> |
Queue a rectangular Overworld area, max 10,000 tiles |
/webmap fullrender <radius> |
Render a square around spawn, radius in tiles |
/webmap stoprender |
Clear the render queue |
/webmap reload |
Reload config and restart the web server if bind or port changed |
Tile coordinates:
tileX = floor(blockX / 256)
tileZ = floor(blockZ / 256)Example:
/webmap render 0 0This renders blocks 0..255 x 0..255.
Config and Storage
| Aspect | Forge | Fabric |
|---|---|---|
| Config file | config/forgewebmap-common.properties |
config/fabricwebmap-common.properties |
| Tile path | world/forgewebmap/tiles/ |
world/fabricwebmap/tiles/ |
| Static web files | packaged under /web/ in the mod jar |
packaged under /web/ in the mod jar |
Config is created automatically on first run.
| Key | Default | Description |
|---|---|---|
enabled |
true |
Enable the mod |
bindAddress |
0.0.0.0 |
HTTP bind address; use 127.0.0.1 for local-only access |
port |
8123 |
HTTP port |
tileSize |
256 |
Tile size in blocks and pixels |
renderThreads |
1 |
Background PNG render worker threads |
maxTilesPerTick |
1 |
Max tiles sampled per render interval |
ticksBetweenRenders |
20 |
Server ticks between queue processing steps |
enablePlayerMarkers |
true |
Show players on the map |
enableAutoRender |
true |
Queue tile renders when chunks load |
chunkRenderDebounceMs |
5000 |
Delay after the last chunk-load event before rendering that tile |
renderRadiusAroundPlayers |
4 |
Reserved for player-radius rendering behavior |
saveTilesInsideWorldFolder |
true |
Store tiles under the world folder |
tilesDirectory |
loader-specific | Relative tile output directory |
logRenderProgress |
true |
Log every 50 rendered tiles |
Tile layout:
world/<loader-webmap>/tiles/
├── overworld/
│ └── 0/
│ ├── 0_0.png
│ └── ...
├── the_nether/
│ └── 0/
└── the_end/
└── 0/API Endpoints
| Method | Path | Description |
|---|---|---|
GET |
/ |
Web map frontend |
GET |
/app.js |
Frontend JavaScript |
GET |
/style.css |
Frontend CSS |
GET |
/tiles/{dim}/{zoom}/{x}/{z}.png |
PNG map tile |
GET |
/api/status |
Mod status, queue size, worker count, rendered tile count |
GET |
/api/players |
Online players with name, dimension, coordinates, and yaw |
GET |
/api/config |
Tile size, zoom range, and available dimensions |
GET |
/api/biome?dim=overworld&x=100&z=200 |
Biome display name and registry ID |
Loader Differences
| Aspect | Forge | Fabric |
|---|---|---|
| Mod entrypoint | @Mod class |
ModInitializer.onInitialize() |
| Lifecycle hooks | Forge server events | ServerLifecycleEvents |
| Tick hook | TickEvent.ServerTickEvent |
ServerTickEvents.END_SERVER_TICK |
| Chunk-load hook | ChunkEvent.Load |
ServerChunkEvents.CHUNK_LOAD |
| Command hook | RegisterCommandsEvent |
CommandRegistrationCallback.EVENT |
| Logging | Forge LogUtils |
SLF4J LoggerFactory |
Behavior is intended to be identical across both loaders.
Known Limitations
- 2D only: no 3D, isometric, or cave map yet.
- Simple block-color palette: no resource pack textures or biome tinting yet.
- Render commands currently target Overworld only, although tile storage supports all three vanilla dimensions.
fullrenderrenders a square around spawn, not every existing region file.- Unloaded or ungenerated chunks stay transparent until rendered/generated; previously rendered pixels are preserved during re-renders.
- No authentication and no HTTPS; anyone with network access to port 8123 can view the map.
- Only zoom level
0is rendered natively; Leaflet scales it visually for other zoom levels.
