SimCity Expansion

Minecraft 版本： 1.21.1

平台： neoforge

标签： management utility

Contents

• Overview
• Features
• Requirements and installation
• Opening the manager
• The manager
• Structure editor
• Capturing builds from the world
• Build packs
• Structure formats
• Directory layout
• Commands
• Documentation
• Building from source
• License
• Acknowledgements

Overview

SimCity Expansion is a NeoForge mod for Minecraft 1.21.1 that adds a complete building
expansion-pack pipeline to New-Simukraft-1.21.1 (a city-building mod). It lets you import
structures from three common formats, convert them into SimuKraft's buildable format,
organise and edit them through a Litematica-style manager, and package them as portable
zip packs for one-click install and sharing.

Integration with SimuKraft is a pure file-system convention — the mod writes .sk and
.nbt files under <game dir>/simukraftbuilding/<category>/ — so there is no compile-time
dependency on SimuKraft. The manager is built on Minecraft's own GUI toolkit and needs no
extra library, and the command interface runs on a dedicated server as well.

Features

• Three structure formats — vanilla .nbt, Litematica .litematic (multi-region
  auto-merge), and Sponge/WorldEdit .schem (v1/v2/v3), all converted to SimuKraft's
  vanilla buildable format on install.
• Robust conversion — older structures are upgraded through the game DataFixer,
  missing mod blocks are detected against the registry, and block-entity contents
  (chest inventories, signs, and so on) are preserved (entities are not).
• Litematica-style manager (open with \) — file tree, fixed-width info panel,
  material list, and layered previews: embedded thumbnail, real-block 3D scene,
  isometric voxel view, and top-down map.
• Full structure editor — place / break / pick / replace, brush painting, box
  selection with fill / frame / hollow / expand, copy / cut / paste, rotate and mirror,
  symmetry axis, undo / redo, slice planes, and preset camera views; export to
  .litematic or save and install directly.
• Capture from the world — mark two corners in-game, capture the selection as a
  blueprint, and optionally include block-entity contents.
• Zip pack ecosystem — manifest-tracked install / uninstall, one-click export of
  installed buildings into a shareable pack, an optional pack icon and an index.json
  file manifest, and pass-through of SimuKraft native job/trade definitions (format v2).
• No hard dependencies — the manager runs on Minecraft's own GUI toolkit and SimuKraft
  is integrated purely through the file system, so neither is a compile-time dependency.
• Server-friendly — the /buildpack command (operator level 2, with tab-completion)
  installs loose files and packs and captures regions on dedicated servers, reusing the
  same conversion pipeline as the GUI.
• Localised — English, Simplified Chinese, and Traditional Chinese; numbers, dates,
  and file sizes are formatted per the active game language.

Requirements and installation

Place the jar in your mods/ folder — there are no other mod dependencies. The in-game
manager works out of the box on a client; on a dedicated server the jar loads headless and
exposes the /buildpack command.

Opening the manager

Press \ (backslash) in-game. All bindings are rebindable under the mod's
category in Options -> Controls.

The manager

The left panel has three tabs:

• Import Files — loose .nbt / .litematic / .schem files in the import directory.
• Packs — zip build packs in the import directory, shown as an expandable tree
  (pack -> category -> building). Any building can be previewed and read directly from
  the zip, without extracting it first.
• Installed — buildings already present in SimuKraft's building directory.

The info panel on the right shows metadata rows, a preview, a material list (counted by
block type, with missing blocks flagged), and a .sk metadata form (editable on the
Import tab, read-only elsewhere). It supports drag-and-drop import, search, sort,
batch install, and two-click delete. When you browse a pack that ships an icon, the icon
is shown in the preview area.

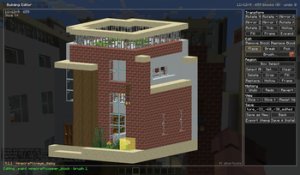

Structure editor

Open a structure in the editor to refine it before installing:

• Edit — place, break, pick, and replace blocks; paintbrush with adjustable size and
  paint strokes; remove or replace a whole block type at once.
• Selection — box-select a region (click two cells or drag a box face), then
  fill / frame / hollow / expand / clear it, with copy, cut, and paste.
• Transform — rotate 90 degrees and mirror along any axis, with a symmetry axis for
  mirrored editing.
• History — undo and redo.
• View — cycle slice planes, fit and focus the selection, preset camera angles, grid
  and gizmo toggles, and perspective toggle.
• Output — Save as New, Save and Install, or Export .litematic.

Press H inside the editor for the full shortcut list.

Capturing builds from the world

Build something in your world, then turn it into a blueprint without leaving the game:

1. Look at a block and press [ to set corner A, then ] to set
   corner B. The selection box is drawn in the world.
2. Press ' to capture the selection and export it to the import directory.
3. Optionally bind the "include block-entity contents" key to capture chest inventories
   and similar data, and the "clear selection" key to reset the corners.

The same operation is available on servers via /buildpack capture (see
Commands).

Build packs

Buildings are grouped into five fixed categories: residential, commercial,
industry, public, and other.

• Install / uninstall — installing a pack converts every building into the matching
  category directory and records a manifest in simcity_expansion/installed_packs.json,
  so uninstalling removes exactly the files that pack added.

• Export (Installed tab -> Export) — packages the listed buildings (respecting the
  current search filter) into a zip. Options:

  • include .sk metadata,
  • include SimuKraft job/trade JSON,
  • include an icon — tick the box and leave the path blank to auto-render one from
    the first building's preview, or supply a custom PNG path.

  An index.json file manifest (each packed file with its type, category, size, and
  SHA-256) is always written at the zip root.

• Manifest — pack.json (format 2) carries id, name, version, author,
  description, an optional icon, and a generated timestamp.

The full pack specification (directory layout, pack.json, .sk / .meta.json metadata,
native job/trade JSON, icon.png, and index.json) is documented in
docs/pack-format.zh.md.

Structure formats

All formats are converted to vanilla .nbt on install (SimuKraft's build system only reads
the vanilla format). During conversion the structure is DataFixer-upgraded to the current
game version, block-entity positions are remapped and preserved, the palette is checked
against the registry for missing blocks, and the merged volume is capped at 16,000,000
blocks.

Directory layout

<game dir>/
├── simcity_expansion/
│   ├── import/                 import directory (drop loose files and zip packs here)
│   ├── export/                 exported build packs
│   └── installed_packs.json    installed-pack registry
└── simukraftbuilding/<category>/   SimuKraft building directory (install target)

Commands

All /buildpack subcommands require operator level 2 (game masters) and offer
tab-completion.

Documentation

Chinese versions are also available: usage.zh.md and
pack-format.zh.md.

Building from source

The project uses the Gradle wrapper and a NeoForge ModDevGradle toolchain (JDK 21).

./gradlew build

The built jar is written to build/libs/.

License

All Rights Reserved. Copyright © 2026 xinian.
This source is published for reference; it is not licensed for redistribution or derivative works without permission.
When using in a modpack, you must link back to the original link.

Acknowledgements

• New-Simukraft-1.21.1 — the
  city-building mod this expands.

• devins-badges — the badge artwork in this
  readme.

  About the old version

• 1.20.1 Forge has been abandoned for development
